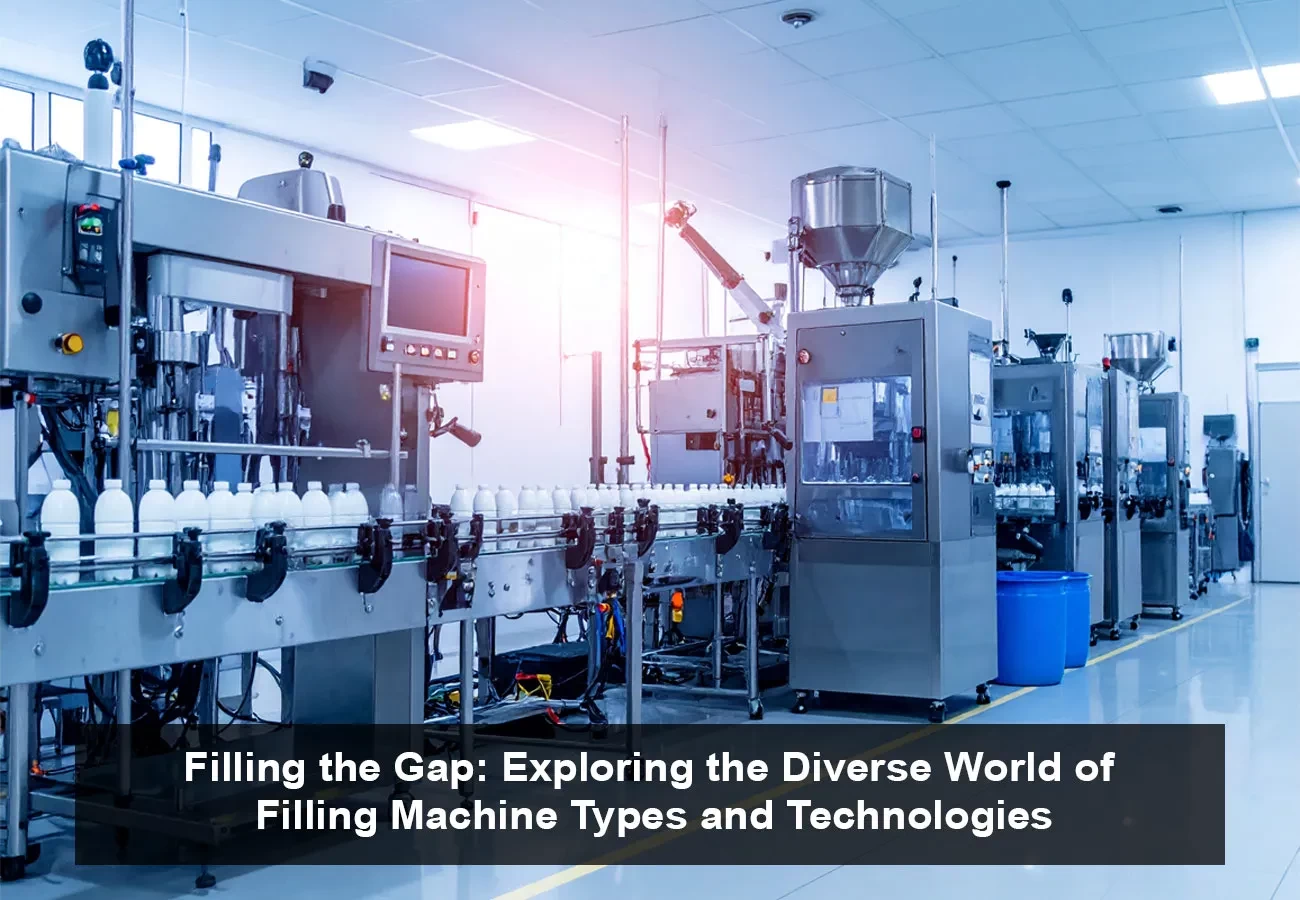

Filling the Gap: Exploring the Diverse World of Filling Machine Types and Technologies
The range of filling machines spans from the tiniest vial of perfume to the largest drum of industrial chemicals; they play an important role in the filling of many products. Filling machines ensure that the correct amount is filled for less wastage and increased production. The filling machines are diverse; there are many types and technologies suited for various products, for varying viscosities and fill volumes. This blog delves into the fascinating landscape of filling machine types and the technologies that enable them.
- Overview of classification for Filling Machines:
The filling machines may be classified broadly according to a few factors, such as:
- Nature of Product: liquid fillers, powder fillers, paste fillers, and granular fillers.
- Way of Filling: volumetric, gravimetric, net weight, and level filling.
- Degree of Automation: manual, semi-automatic, and fully automatic.
- Types of Containers: bottles, cans, pouches, bags, and drums.
- Different Types of Filling Machines:
Let us try to understand some of the most common types of filling machines:
- Liquid Fillers: Filling machines designed for various liquids, from water up to oils and syrups, belong to this category. They may be further classified as:
- Volumetric Fillers: Measure a determined volume of liquid by means of a piston, pump, or cup and may be used to deliver constant volumes.
- Gravimetric Fillers: These fill liquids by weight and may be very accurate independent of variations in density or viscosity of the product.
- Pressure Fillers: Used in the case of carbonated beverages and the like and require pressure control during the filling process.
- Vacuum Fillers: Used for viscous liquids and products that generate foams, thereby preventing air pockets and assuring accuracy in fill.
- Powder Fillers: Will dispense powders accurately into containers. Some common types include:
- Auger Fillers: Uses a rotating screw (an auger) to dispense powder in an exact amount. Works best for the free-flowing powder.
- Vibratory Fillers: With vibrating, the powders will settle and consolidate, allowing volumetric filling to be ensured with some consistency. Suitability extends to powders that are prone to bridging or clumping.
- Net Weight Fillers: This weighs the powder as it is dispensed, thus providing greater accuracy.
- Paste Fillers: These are machines designed for viscous and semi-solid products such as creams, lotions, and pastes; these machines usually dispense product with piston pumps or lobe pumps.
- Granular Fillers: These are machines that fill free-flowing granular materials such as grains, seeds, and small pieces of hardware; either volumetric or gravimetric filling principles may be used.
- Key Filling Technologies:
A number of technologies are propelling the operation of filling machines:
- Piston Filling: Employs a reciprocating piston to draw and dispense a fixed volume of product. This technology can suit any kind of viscosity.
- Pump Filling: One of the several types of pumps, ranging from gear pumps to centrifugal pumps or peristaltic pumps, is used to transfer and dispense liquids. Suited for different flow rates and viscosities.
- Flow Meter Filling: The flow rate going through an ordinary length of tube or pipe with a meter may halt the fill when the desired volume is reached. Very accurate and flexible.
- Timed Filling: The dispenser dispenses a certain volume of product over a specific time. It is comparatively less accurate than other dispensing technologies, but it is effective in less-sensitive applications.
- Level Sensing Filling: Fills containers to predetermined levels by controlling their height using sensors. The mode of filling is appropriate in cases where consistency in filling level is important.
- Weight Filling: Determines the weight of the product being filled into the container, while providing a high degree of accuracy while preventing spoilage of the production.
- Improvements that Current Machines Have Been or Are Being Designed to Take:
The field of filling machine technology is a moving target; there will be innumerable advances of these machines to accomplish better filling jobs with embellishments ranging to improved accuracy and better flexibility:
- Servomotor Technology: In most cases, the mechanical filling equipment is replaced by the servomotor one, giving more control over filling and product characteristics and hence making for a better filling accuracy while reducing change times.
- Automatic Changeover Systems: The filling machine is automatically set according to the type of products or containers. This permits the production line to be on stream virtually continuously, with minimal downtimes and change times when the product or material type is changed.
- Robotic Integration: Filling lines are automated through robotic integration in the zones of handling containers, product placement, and palletizing, eliminating the need for human intervention.
- Vision Systems: Digital cameras and other vision software monitor the filled containers for real-time defect identification, thus allowing manufacturers to implement quality control and dramatically reduce wastage.
- Hygienic Design: Used in the food and pharmaceutical industries, hygienically designed machines allow minimal contamination and improved product safety.
- Smart Filling Machines: The integration of sensors, data analytics, and connectivity permits real-time monitoring of filling machine performance, predictive maintenance, and optimized production.
- Selection of the Right Filling Machine:
Choosing the appropriate filling machine depends on various factors:
- Product Type: Liquid, powder, paste, or granular.
- Viscosity: Thin, thick, or semi-solid.
- Filling Volume: Small doses or large volumes.
- Type of Containers: Bottles, cans, pouches, or bags.
- Production Volume: Small batches or high-speed production.
- Accuracy Requirements: Level of precision needed for filling.
- Budget: Capital and operating costs.
- The Future of Filling Machines:
Thus, while the robots and other data analytics have historically driven further development in the field of filling machines, the future of these machines is more likely to be determined by further advances in automation and robotics. Predictive maintenance-enabled Intelligent filling machines will also become more common, thus increasing production efficiency and reducing downtime. Sustainability will also drive new growth potentials, focusing on improved energy efficiency and lower quality product waste. The growth of advanced technologies of differentiation of filling machines ensures they perform even better in the interests of achieving further confidentiality and accuracy in packaging across different industries. This flexibility in technology can assist customers to optimize their filling solutions based on their needs.
